SCM Refresh

 Introduction

This document is designed specifically during System Refresh for SCM system. This document will be helpful for SAP BASIS consultant to give all basic knowledge of SCM System Refresh. If we want to refresh our system legacy data with production data in quality or pre-production, we perform the system refresh. Example copying production data to quality or pre-production environment. Here production will be online during this activity.


SCM System Refresh:

In this process we copy the system from the production to lower environment like Pre-production or sandbox for below purposes.

  1. Before any cutover/go live for testing.
  2. Before Any upgrade of Enhancement package or support pack stack upgrade or version upgrade.
  3. Companies want their SAP test system to look like their production system for better testing.

Pre-Steps

Step 1 Screen shot of some transaction to compare after refresh

  1. STMS: Transport Domain, System Overview, Transport Configuration, Transport Parameter
  2. SCC4: Client status open / close.
  3. AL11: Transport directory location.
  4. RZ03: Operation Mode, Current work process status, instance and startup profile location rom instance status
  5. RZ12:
  6. SMLG:
  7. WE20: Partner profile.
  8. SM59:
  9. SS02:
  10. SLICENSE for later use of Hardware Key
  11. DB13
  12. FILE
  13. SLDAPICUST note which system
  14. STRUSTSSO2 see which tickets are active
  15. SECSTORE

Step 2 Screen shot of some table using SE16

  1. EDPP1
  2. RSBASIDOC
  3. USR02 Number of entries (to compare after import)
  4. V_TBDLS
  5. RSLOGSYSDEST
  6. RSLOGSYSMAP
  7. TVARVC
  8. V_CONVERTER

Step 3 SM37: download all BTC info into .XLS

Step 4 SPAD: Printer Export as .txt format

Step 5 Export Background Jobs:

Export tables: exp: then put in a dump file

TBTCA

TBTCB

TBTCCNTXT

TBTCCTXTT

TBTCCTXTTP

TBTCI

TBTCJSTEP

TBTCO

TBTCP

TBTCR

TBTCS

VARID

VARI

VARIT

VARIS

Step 6 RFC export:

RFCATTRIB

RFCCHECK

RFCDES

RFCSYSACL

RFCTRUST

Step 7 Export AL11 table USER_DIR

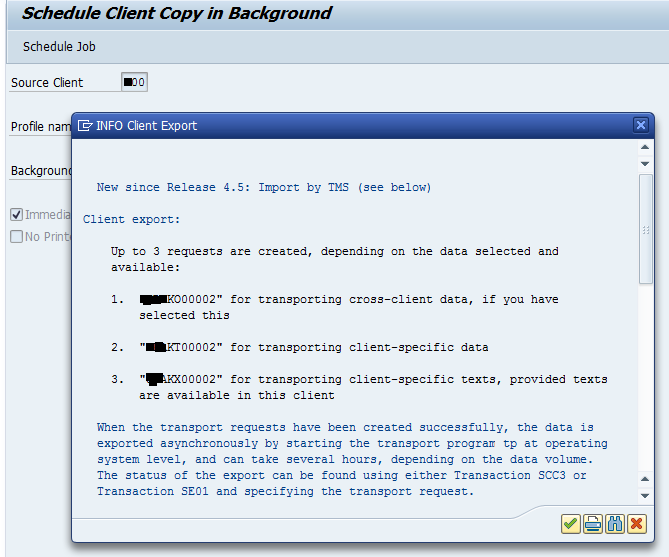

Step 8 SCC8 User Master Data Export

Users master data of that client exported so the user of production not reflect to the target system.

Up to 3 requests are created, depending on the data selected and available:

1. "XXXKO00012" for transporting cross-client data, if you have selected this

2. "XXXKT00012" for transporting client-specific data

3. "XXXKX00012" for transporting client-specific texts, provided texts are available in this client

SAP Help

STEPS:

1. SCC8

2. Choose profile SAP_USER and Target system as same client.

3. Schedule job immediately with no printer Dialog

4. Continue

5. SCC3 go to Export

6. Wait till finished.

Refresh Activity:

Removing data files of XXX & coping PRD data (user orasid)

cd /oracle/XXX/

rm -r sapdata1

rm -r sapdata2

rm -r sapdata3

rm -r sapdata4

rm -r origlogA

rm -r origlogB

rm -r mirrlogA

rm -r mirrlogB

cd /oracle/XXX/ (we are here only so no need to do it (user orasid))

scp -pr /tmpmount/sapdata1 . &

scp -pr /tmpmount/sapdata2 . &

scp -pr /tmpmount/sapdata3 . &

scp -pr /tmpmount/sapdata4 . &

scp -pr /tmpmount/origlogA . &

scp -pr /tmpmount/origlogB . &

scp -pr /tmpmount/mirrlogA . &

scp -pr /tmpmount/mirrlogB . &

Post Step

STEP 1 Create Control File on Source System

  • su – ora<Target SID>
  • sqlplus / nolog
  • connect / as sysdba
  • alter database backup controlfile to trace;
  • cd /oracle/SID/saptrace/usertrace
  • cp <latest-file>.trc SIDcontrol.sql
  • scp SIDcontrol.sql to Source system

STep 2 Edit Control File on Target System

  • Chown orasid:dba SIDcontrol.sql

Step 3 Login to database & recover the database from controlfile.

STEPS:

  1. oraxxx>Sqlplus / as sysdba;

  2. startup nomount
  3. @/xxx/xxx.sql
  4. Recover database using backup controlfile until cancel;
  5. alter database open resetlogs;
  6. alter tablespace PSAPTEMP add tempfile '/oracle/XXX/sapdata1/temp_1/temp.data1' size 540M reuse autoextend on next 20000000 maxsize 10000M;
  7. Shutdown Immediate;
  8. startup mount;
  9. alter database noarchivelog;
  10. alter database open;
  11. alter database rename global_name to XXX
  12. @/oracle/post_copy.sql

Step 4 We need to drop the “OPS$” users of PRD system & need to create the users with current SID.

STEPS:

1. Select username from dba_users; (it will show list of all OPS$ user and create this user again with XXX sid and provide the role related to it)

  • SYSTEM
  • SYS
  • OPS$SAPSERVICEXXP
  • OPS$ORAXXP
  • OPS$SR3ADM
  • OPS$XXPADM
  • SAPSR3
  • OUTLN
  • ORACLE_OCM
  • DIP
  • DBSNMP
  • APPQOSSYS

2. Drop user OPS$ORAXXP cascade;

3. Drop user OPS$XXPADM cascade;

4. Drop user OPS$SAPSERVICEXXP cascade;

5. Create user OPS$ORAXXX identified externally externally default tablespace SYSTEM temporary Tablespace PSAPREMP;

6. Create user OPS$XXXADM identified externally externally default tablespace SYSTEM temporary Tablespace PSAPREMP;

7. Create user OPS$SAPSERVICEXXX identified externally externally default tablespace SYSTEM temporary Tablespace PSAPREMP;

8. Grant DBA, Connect, Resource to OPS$XXXADM;

9. Grant exp_full_database to OPS$ORAXXX;

10. Create SYNONYS "OPS$SERVICEXXX".SAPUSER for "OPS$XXXADM".SAPUSER;

11. Create table "OPS$XXXADM".SAPUSER (USERID VAARCHAR2 (256), PASWORD VARCHAR (256));

12 INSERT INTO "OPS$XXXADM".SAPUSER ('SAPSR3', '*******');

13. Commit;

14. @Sapmnt/xxx/exe/sapconn_role.sql (it will disconnect SQLPLUS)

15.sqlplus / as sysdba;

16. @Sapmnt/xxx/exe/sapdba_role.sql SR3 (it will disconnect SQLPLUS)

17. logout

18. su - xxxadm

19. R3Trans -d

Step 5 Drop PRD tables & reimport the exported tables of the old system.

STEPS

  • 1.sqlplus / as sysdba;
  • 2.@/oracle/xxx/batch-table-drop.sql;
  • 3.Drop table sapsr3.USER_DIR;
  • 4. imp
  • 6.sapsr3
  • 7.*******

Step 6 After importing Old table data login to SAP & do post stepsSE06

  • Database copy or database migration
  • Do u want to reinstall CTS--> yes
  • Source system of Database copy--> XXP
  • Change original from XXP to XXX
  • Change the transport System not configured--> ok
  • Do u want to Change original from XXP to XXX --> YES
  • Delete TMS Configuration--> NO
  •  Delete the original version of transport routes--> NO
SAP How To

Step 7 STMS: Restore as old system

  • System: XXX
  • Description: XXX SAndbox
  • Save

Step 8 BDLS: New logical system Name: xxxclnt500

  • Conversion of client dependent and client independent Tables
  • Table to be converted: **
  • Continue with conversion Anyway. YES

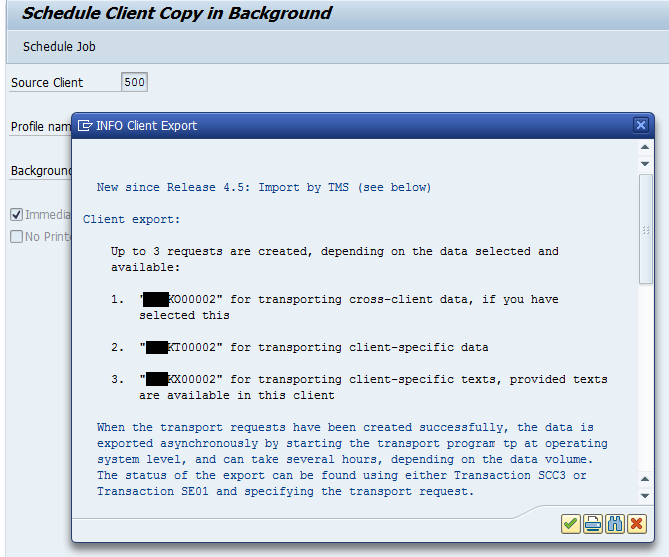

Step 9 Import user master

SAP Help

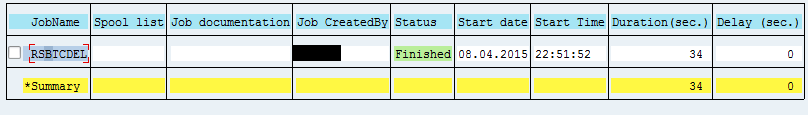

Step 10 Delete cancelled and Finished jobs

  • Go to SE38 Run RSBTCDEL. Execute in Background -> Create a Variant named “REFRESH” with the following properties:
  • Jobs from all users (*), Days 01, Fill three boxes at the bottom with ‘X’.
  • Be sure to check ‘delete with forced mode’
  • Save the variant, go a step back and click “Execute Immediately.”
SAP How To

Conclusion

The Refresh process will provide latest data in quality or pre-production environment which will helpful in rectifying error before production. I recommend to perform this activity every quarter or before any major changes and go live.
